The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the A Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in Bonfiglioli’s light- and medium-duty portfolio. The A Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (B-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the A Series.
Key benefits
Minimized mounting space
Reduced installation space and wide output speed selection range
Reduced standard backlash
Highly dynamic, energy-saving solution
Wide output speed selection range
Gearboxes can operate safely in explosive environments
Main options
Surface protection up to C5
Reinforced bearings
Reduced backlash
Torque arm
Fluoroelastomer oil seals
Double oil seasonal input
Taconite seals
Torque range
100 … 14,000 Nm
Gear ratios
4.9 … 1,715
Certifications
Certificate of compliance
Inspection certificate
ATEX
Transmissible Mechanical Power
0.22 …150kW

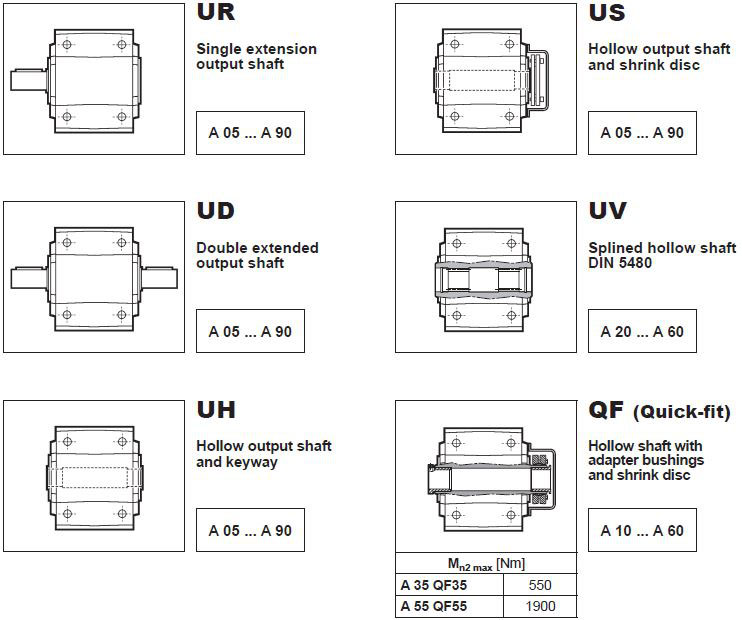

Output
Feet and shaft mount with two bore options per size
Solid shaft, splined hollow shaft, hollow shaft with shrink discs
