The C Series is designed for the requirements of standard tasks in the industrial environment. These series achieve first-rate reliability, efficiency, robustness, and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-stage versions, allows the customer to adapt the C Series to every application and to find the perfect match for output speed requirements. The C Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (B-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the C Series.
Key benefits
Cost-effective solution
Minimized mounting space
Easy maintenance
Operation in a high-temperature environment
High resistance to external hits
Pure coaxial torque transmission
Main options
Long-life lubrication [sizes from 16 to 35]
Gearbox supplied with oil [sizes from 45 to 100]
Fluoroelastomer oil seals
Torque range
45 … 12,000 Nm
Gear ratios
2.6 … 1,481
Certifications
Certificate of compliance
Inspection certificate
ATEX
Transmissible Mechanical Power
0.09 … 213 kW
Output

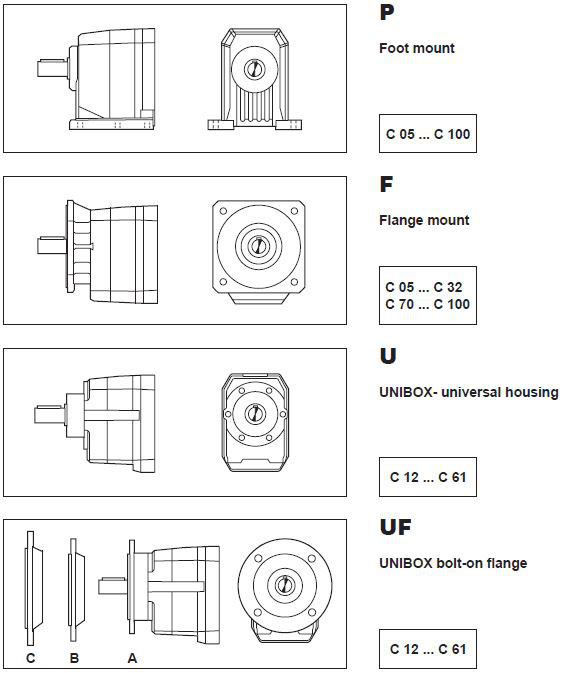

Feet or flange mounting, B14 flange
Metric or inch series solid output shaft
