The F Series is an outstanding solution for customers looking for a drive that can maximize mounting flexibility. Thanks to the housing’s lateral holes, the F Series can also be side mounted directly into the machine, in addition to all the conventional mounting positions. This gearmotor guarantees elevated efficiency, reliability and low-noise operation. High torque density, a range of wide gear ratios and a compact design complete the F Series’ characteristics. The F Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (B-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the F Series.
Key benefits
Cost-effective solution
Minimized mounting space
Robustness
Reduced standard backlash
Highly dynamic, energy-saving solution
Main options
Long-life lubrication [Sizes from 10 to 40]
Gearbox supplied with oil [Size 50]
Surface protection up to C5
Fluoroelastomer oil seals
Torque range
140 … 14,000 Nm
Gear ratios
6.4 … 2,099
Certifications
Certificate of compliance
Inspection certificate
ATEX
Transmissible Mechanical Power
0.09 … 123 kW

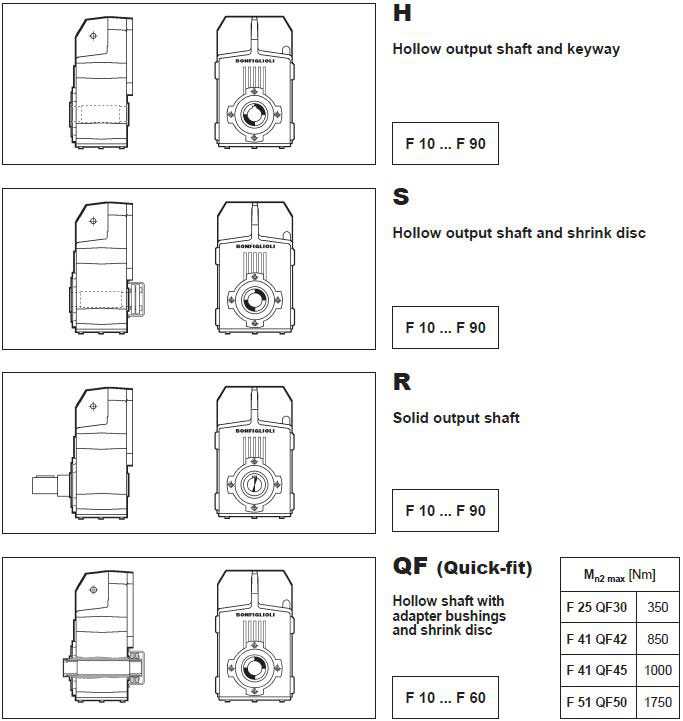

Output
Keyed hollow shaft – Two dimensions for each size
Keyless shrink disc fitting
Plug-in solid output shaft as an option
Quick fit
