ASYNCHRONOUS THREE PHASE MOTORS – EVOX BXN SERIES

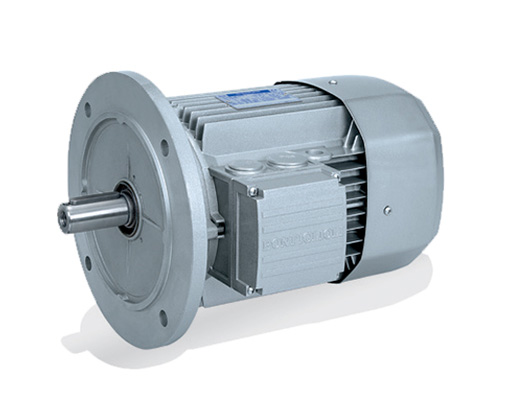

BXN, MXN and MNN are asynchronous low voltage e-motors, developed to be modular, efficient and reliable. The new EVOX e-motor family is highly versatile and easy to adapt to a wide variety of needs: BXN is the answer to increasingly complex tech market demand while complying with the strictest energy efficiency standards. Posing no voltage or positioning limits and boasting easy add-on modular accessories and a great variety of versions and options, the EVOX BXN Series is the perfect partner for your business. The motor is available both stand alone and in a compact coupling with Bonfiglioli Gear Units.

• Degree of protection Standard IP55 for motors with and without brake
• Certifications

North America, Brazil, Europe, United Kingdom, India, China, Australia and New Zealand

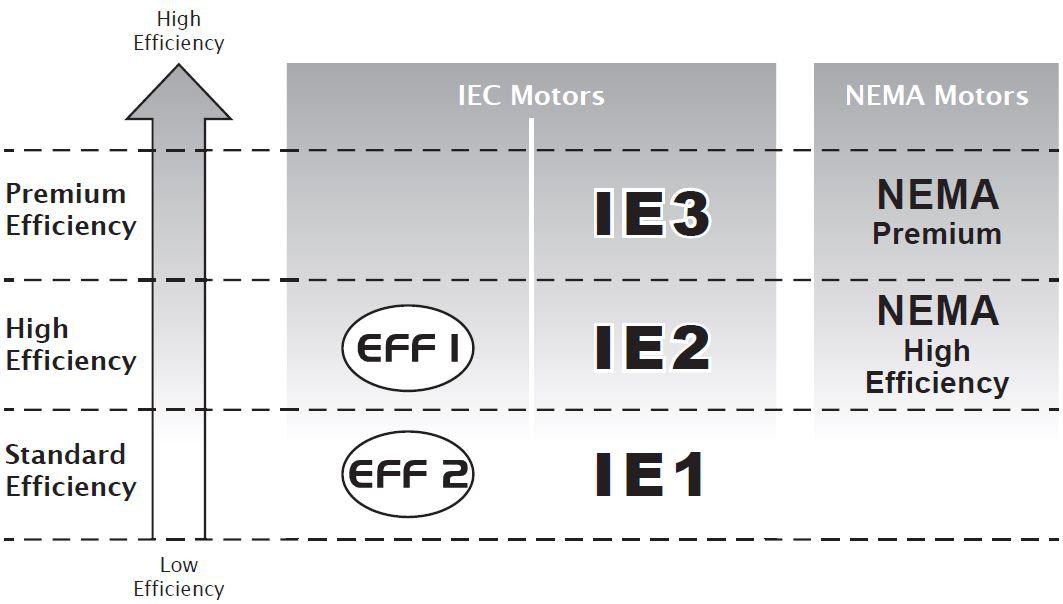

• Conformity Efficiency classes of line operated AC motors (IE code) – EN 60034-30-1 LVD – Low Voltage Directive – 2014/35/EU EMC – Electromagnetic Compatibility Directive – 2014/30/EU ROHS – Restriction of Hazardous Substances – 2011/65/EU Generic standards – Immunity for industrial environments – EN 61000-6-2 Generic standards – Emission standard for industrial environments – EN 61000-6-4

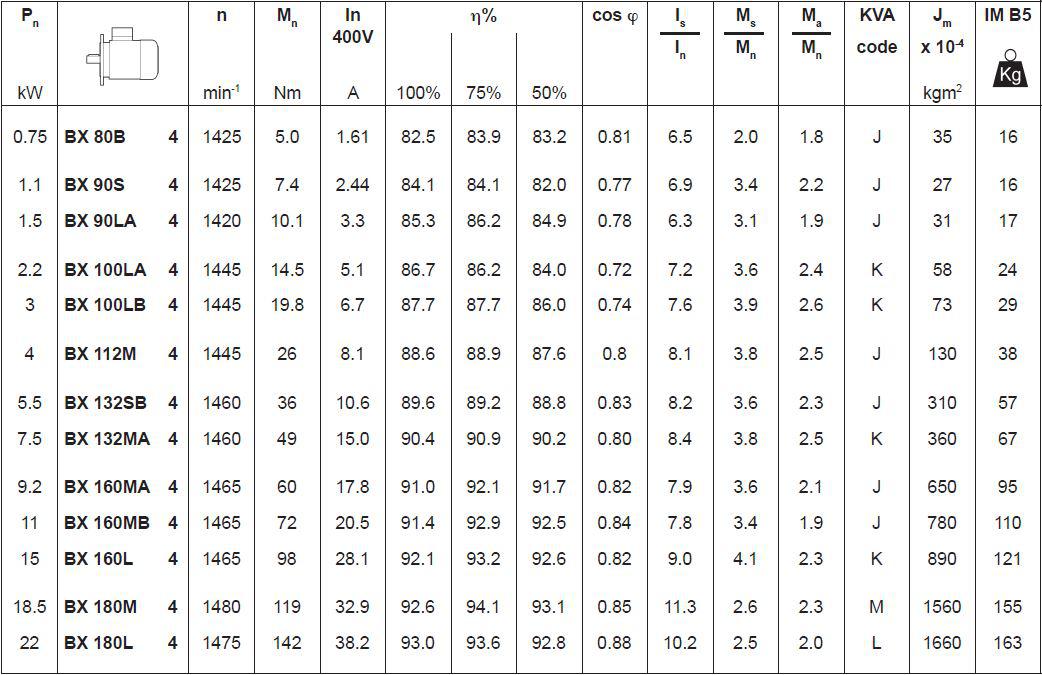

• Power range The new flexible 9-pin terminal box makes it easy to obtain the right standard voltage by simply changing the plug arrangement and select the right winding:

  Winding 1 – WD1 115/200/230/400 – 50Hz 132/230/265/460 – 60 Hz Winding 2 – WD2 200/346/400/690 – 50Hz 230/400/460 – 60Hz Winding 3 – WD3 110/190/220/380 – 50Hz 127/220/255/440 – 60Hz Winding 4 – WD4 95/165/190/330 – 50Hz 110/190/220/380 – 60Hz Winding 5 – WD5 120/208/240/415 – 50Hz 140/240/280/480 – 60Hz Winding 6 – WD6 208/360/415/720 – 50Hz 240/415/480 – 60Hz Winding 7 – WD7 147/255/290/500 – 50Hz 165/290/330/575 – 60Hz Winding 8 – WD8 230/400/460 – 50Hz 265/460/530 – 60Hz Winding 9 – WD9 220/380/440 – 50Hz 255/440/510 – 60Hz Winding 10 – WD10 190/330/380/660– 50Hz 220/380/440– 60Hz Winding 11 – WD11 240/415/480– 50Hz 280/480/550– 60Hz Winding 12 – WD12 290/500/575– 50Hz 330/575 – 60Hz

• Mounting options IM B3 IM B5 IM B14 IM B34 IM B35

  Compact gearmotor coupling available

• Brake options Brake type Brake supply Separate brake supply Up to IP56 protection for brake motors Manual release hand lever Release hand lever position AC/DC rectifier type Microswitch (release and wear monitoring)
• Output IEC
• Motors 3 phase asynchronous
• Motor options Protection up to IP56 for standard and non-brake motors Cable entry position Metal/plastic fan cover Modular encoder, brake, and canopy Thermal protection (thermistors; sensors; switches) Tropicalization Anti-condensation heaters Rain canopies Rotor balancing Double extended shaft

BONFIGLIOLI THREE-PHASE ASYNCHRONOUS MOTORS EVOX BXN SERIES

INSTALLATION, OPERATION AND MAINTENANCE MANUAL EVOX BXN SERIES
