Bonfiglioli’s 300M Series is an outstanding solution for all heavy-duty applications where compactness is not an option. Thanks to its modular design, the 300M Series can be customized to match an extremely wide range of applications. Bonfiglioli’s expertise in planetary technology ensures high-quality product design and manufacturing procedures. The 300 Series operates without unwanted downtime even in the harshest environments. This planetary gearbox achieves top-class flexibility thanks to several outputs, as well as input configurations available for all 20 sizes. The 300M Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors (B-BE-BX/M-ME-MX) can be coupled with 300M Series gearboxes, providing our customers a complete solution.
Key benefits
High torque density
Extreme speed reduction and high output torque
Low maintenance cost
Extremely customizable
Flexibility
Usable in explosive environments
Main options
In line/right angle version
Independent cooling unit
Patented integrated cooling solution
Taconite seals
ATEX certification for explosive environments

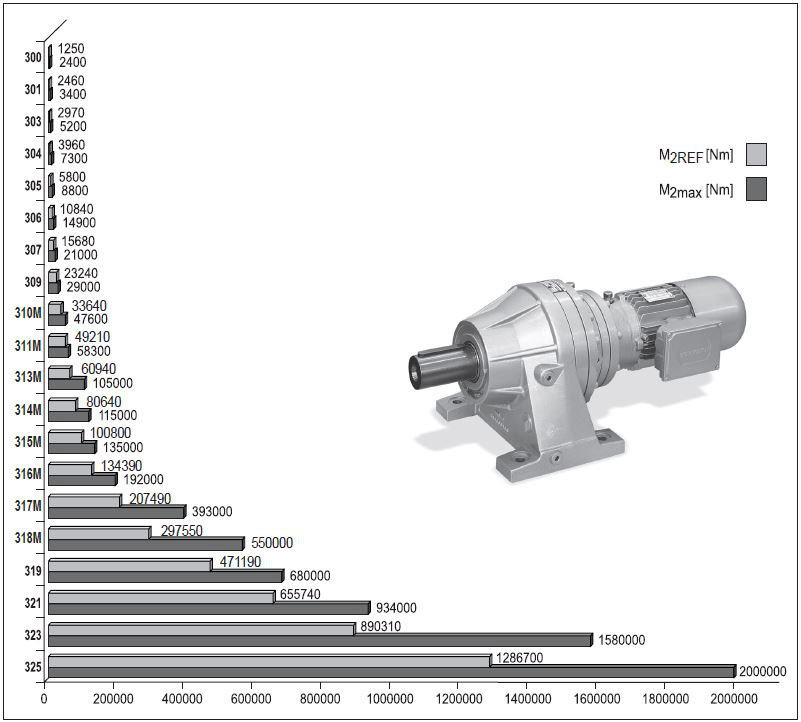

Torque range
1,250…1,286,700 Nm
Gear ratios
3.4 … 2,916
Certifications
Certificate of compliance
Inspection certificate
ATEX
Brake options
Negative multi-disk brake

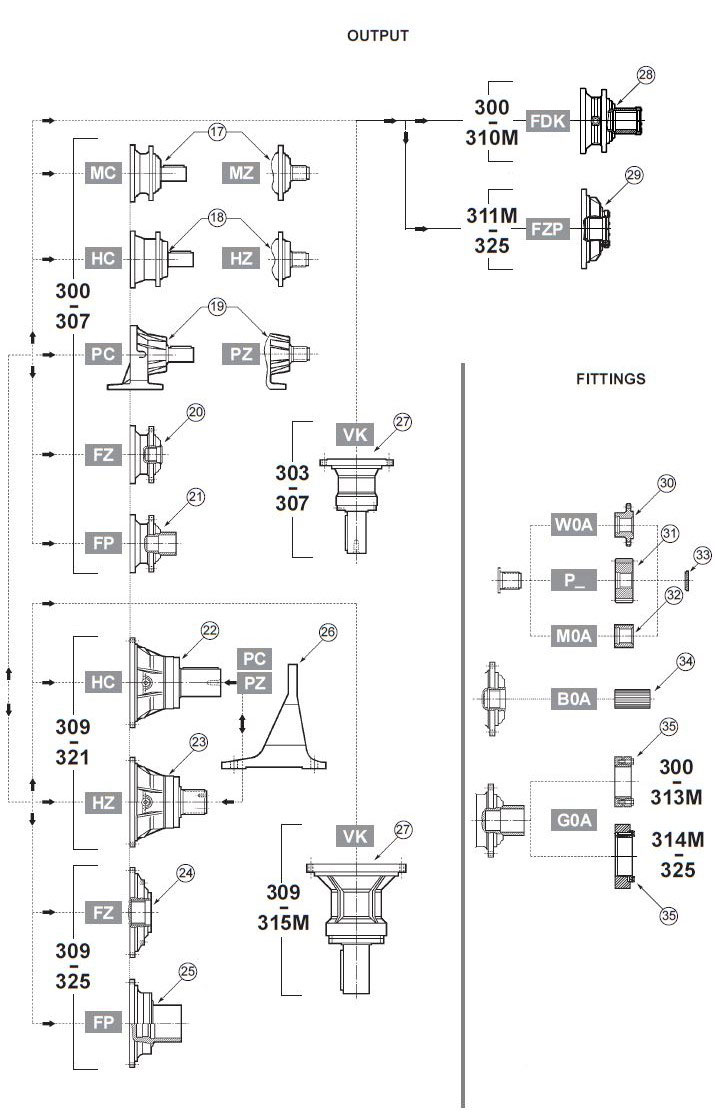

Output
Foot or flange mounted
Splined shaft (male, heavy duty, hollow, hollow with axial blockage device)
Solid keyed shaft (male, heavy duty, stirrer/mixer version)
Hollow shaft with double key way or shrink disk
