SINGLE STAGE GEAR UNITS – S SERIES

The S Series design makes this gearmotor particularly effective for pump, fan and blower applications. To meet the needs of customers in these sectors, the S Series is also available in the foot or flange versions and can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (B-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the S Series. With the breadth of its portfolio, Bonfiglioli provides customers with an outstanding balance of efficiency, dynamics and cost effectiveness.

Key benefits Minimized mounting space Robustness Reduced standard backlash Highly dynamic, energy-saving solution Wide output speed selection range Gearboxes can operate safely in explosive environments

Main options Double oil seals Fluoroelastomer seals Reduced backlash Up to C5 surface protection

Torque range 21 … 200 Nm

Gear ratios 1.4 … 13.1

Certifications Certificate of compliance Inspection certificate

Transmissible Mechanical Power 0.09 … 11.6 kW

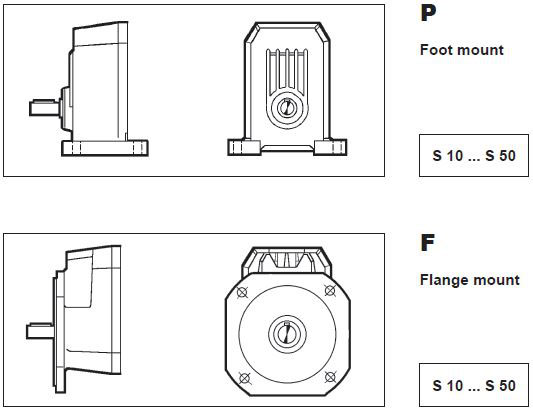

Output Feet mounting Flange mounting
