S2U SERIES

The S2U, plug & play frequency inverter has been designed for entry level applications such as pumps, fans and conveyors. This product offers a cost-effective, easy-to-use solution.

• Main options • Optional interface for communication to PC • ASK-USB: Communication to PC via optional communication cable
• Degree of protection IP20 (EN 60529)
• Rated speed 0 … 650 Hz
• Conformity CE

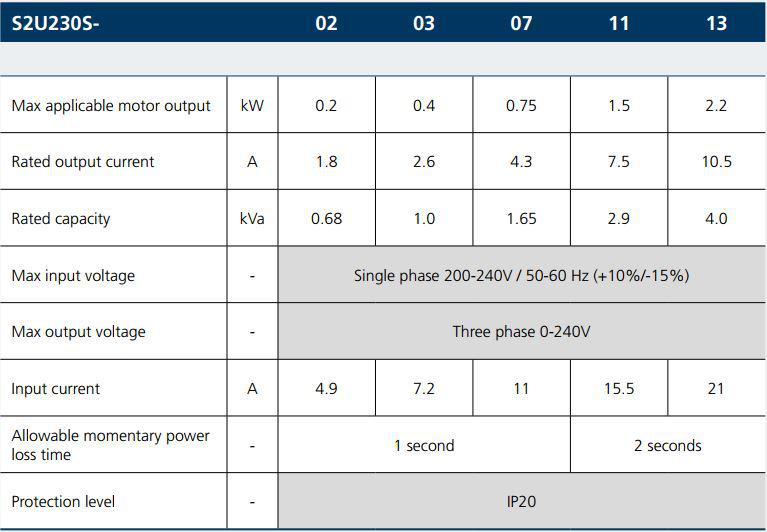

• Power supply & Power range S2U230S–..(F) IP66: 0.2 – 2.2 kW / single-phase 200 – 240V (+10%-15%) / 50 or 60 Hz
• Hardware features • 5-digit display • 1 analog input (V or I selectable) • 5 digital inputs (programmable multifunction) • 1 analog output (voltage linear) • 1 relay output (programmable multifunction) • 1 RJ45 terminal for communication with PC or modbus network

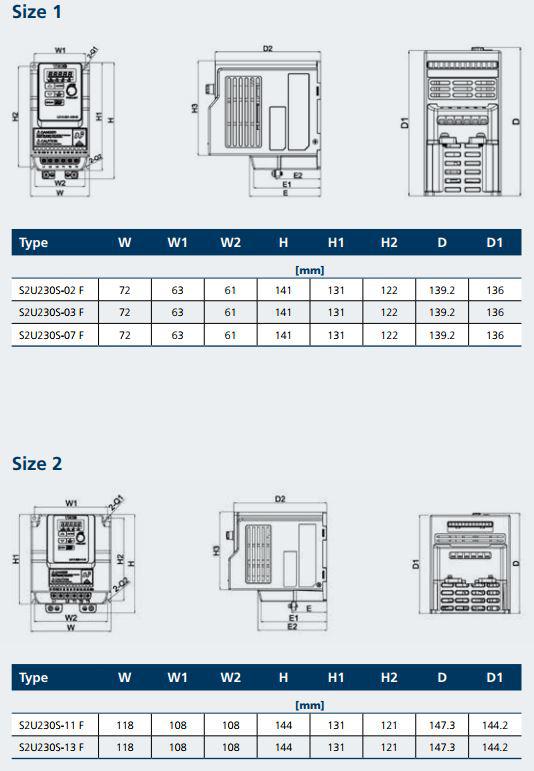

• Mounting options Cabinet mounting for all sizes Optional DIN rail mounting frame size 1
• Motors Asynchronous AC motors
