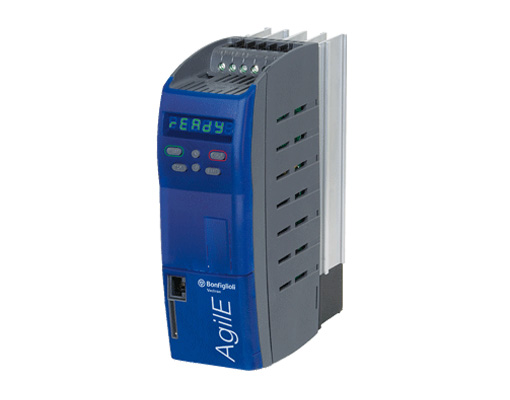

AGILE SERIES

The Agile Series of inverters by Bonfiglioli sets new standards in technology for a broad range of users. Agile inverters are particularly suited for the food & beverage, textile, wood, packaging and ceramic industries, where they can be used in a variety of medium complexity automation processes.

• Main options Multmedia Card Slot • Slot for multimedia card for quick and easy copying

Optional field bus communication: • CM-CAN: CANopen • CM-PDP-V1: PROFIBUS • CM232: Modbus ASCII & Modbus RTU for point-to-point connection • CM485: Modbus ASCII & Modbus RTU via RS485 connection • CM-DeviceNet: DeviceNet • CM-EtherCAT®: EtherCAT® • CM-PROFINET: PROFINET • CM-Ethernet/IP: Ethernet/IP with one usable port as end-of-line device • CM-Ethernet/IP-2P: Ethernet/IP with two usable ports (daisy chaining is possible) • CM-Modbus/TCP: Modbus/TCP with one usable port as end-of-line device • CM-Modbus/TCP-2P: Modbus/TCP with two usable ports (daisy chaining is possible) • Ethernet VABus/TCP: VABus/TCP: with one usable port as end-of-line device • Ethernet VABus/TCP-2P: VABus/TCP: with two usable ports (daisy chaining is possible) Optional interface for communication to PC • ASK-USB: Communication to PC via optional communication cable Optional PC software • VPlus for Windows operating system with motor setup, terminal monitor • Actual value window, scope function, parameter storage Accessories: • Brake resistors Type BR: The brake resistors offer an inexpensive solution to dissipate generator power that occurs at deceleration. A thermal sensor for the brake resistor protects the resistor from overheating. • Power choke type LCVS & LCVT: Power choke types LCVS (for single-phase power installation) and LCVT (for three-phase power installation) increase the overvoltage protection of the inverter and increase the system’s EMC. • Power filters type FTV: Depending on the application boundaries, certain EMC levels must be achieved. The power filters are a component to improve EMC behavior in a machine installation.

• Degree of protection IP20 (EN 60529)
• Rated speed 0 … 599 Hz
• Certifications UL508c STO (EN13849 / EN 61508)
• Conformity CE EN61800

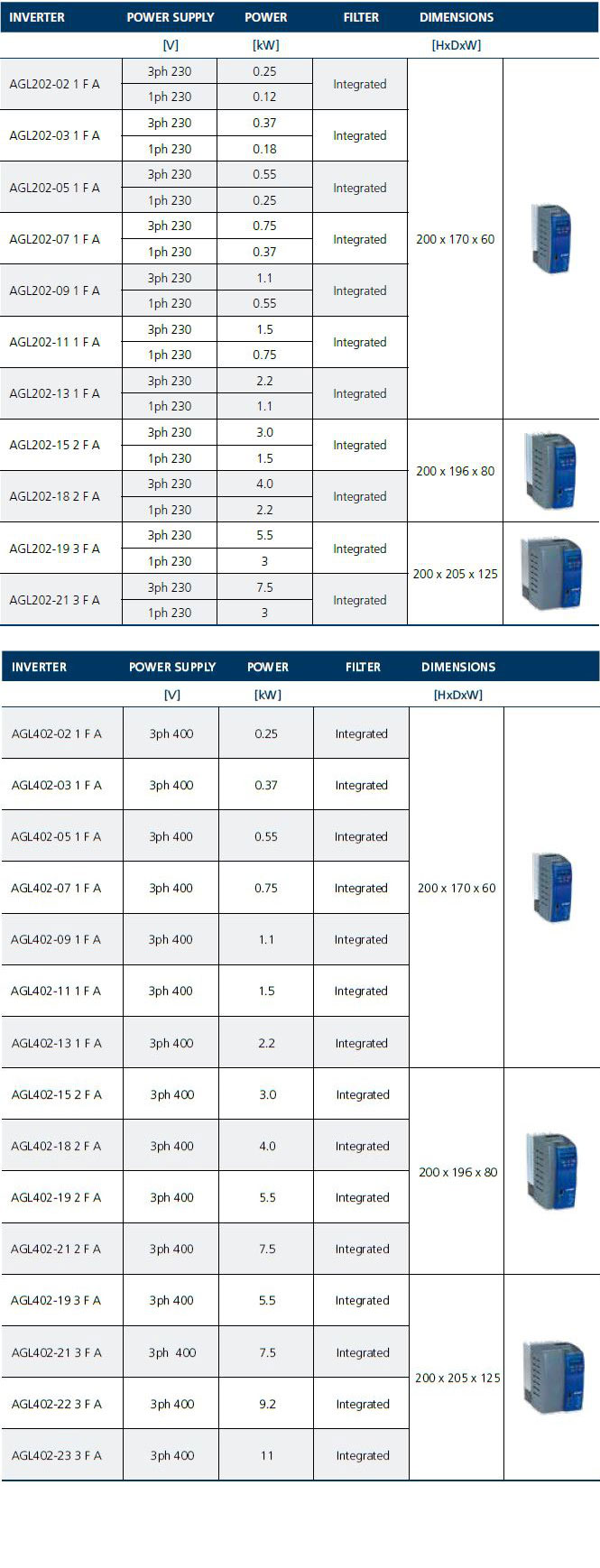

• Power supply & Power range Power range (AGL402) 0.25 – 11 kW / three-phase 320 V… 530 V / 50 – 60 Hz (± 10%) Power range (AGL202) 0.12 – 3 kW / single-phase 200 V… 240 V / 50 – 60 Hz (± 10%) 0.25 – 7.5 kW / three-phase 200 V … 240 V / 50 – 60 Hz (± 10%)
• Software features • Preset values for Bonfiglioli motors to decrease commissioning times • Flexible assignment of digital inputs and outputs • Energy Saving function • Ready to use application macros • Motor chopper function to increase braking power without brake resistors • Power failure regulation • Fault history • Motor and inverter state memory • Integrated PLC function with graphic development environment

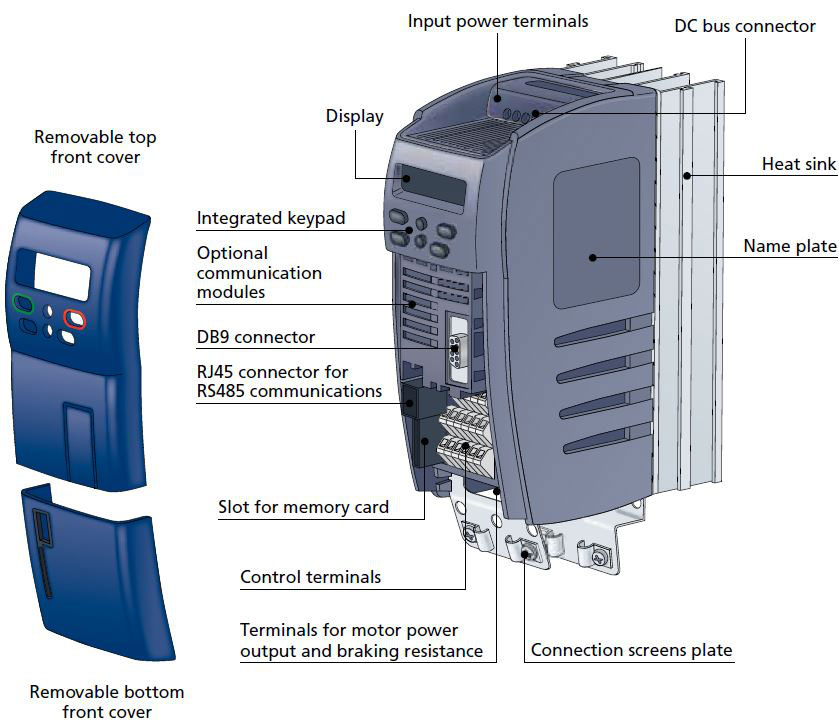

• Hardware features • Integrated Keypad • Integrated brake chopper • Integrated Safe Torque Off function • DC link connection • 6 digital inputs, 2 multifunction A/D inputs • 1 digital output, 1 multifunction I/O • 1 relay output, 1 multifunction A/D/Pulse output • Signal supply outputs: +24 V DC, + 10 V DC +24 V DC input for electronic power supply • Serial interfaces: RS-232, RS-485 including Modbus support system bus
• Mounting options • Cabinet mounting for all sizes • Optional feed-through mounting • Optional DIN rail mounting frame size 1 • Optional ColdPlate mounting
• Motors • Motor compatibility • Two types of motors: • Asynchronous AC motors • Permanent magnet synchronous (brushless) motors
